 | Base |
Base class for the sequence management.
Inheritance HierarchySystemObject
LynceeTec.API.SequenceConfigurationEventsManager
LynceeTec.API.SequenceBaseSequenceManager
LynceeTec.API.SequenceBaseAcquirer
LynceeTec.API.SequenceSequenceLoader
LynceeTec.API.SequenceConfigurationEventsManager
LynceeTec.API.SequenceBaseSequenceManager
LynceeTec.API.SequenceBaseAcquirer
LynceeTec.API.SequenceSequenceLoader
Namespace: LynceeTec.API.Sequence
Assembly: LynceeTec.API.Sequence (in LynceeTec.API.Sequence.dll) Version: 10.2.3317.0 , built 2025-03-17 14:55:36 UTC
SyntaxThe BaseSequenceManager type exposes the following members.
Properties| Name | Description | |
|---|---|---|
 | ConfigManager | Gets the current ConfigManager in use. |
| Configuration | Gets the current configuration used for hologram reconstruction. |
| CurrentState | Gets the current state of the sequence manager. |
| NumberOfRecords | Gets the current total number of records. |
| ReconstructionWindowHalfSize | Defines how many reconstructions must be processed around the selected index. If GetReconstruction(ReconstructionResults, Int32, Boolean) is called for index i, outputs in range [i - ReconstructionWindowHalfSize, i + ReconstructionWindowHalfSize] are reconstructed to optimize the process and anticipate the call to future indices. |
| TemporalAveragingFramesNumber | Gets or sets the number of frames to average during reconstruction process. |
| UseReconstruction | Gets or sets a value indicating whether the reconstruction is enabled. |
| UseReferenceHologramSaving | Gets or sets the option saving the reference hologram(s) in the first hologram metadata of the acquired sequence. |
Methods| Name | Description | |
|---|---|---|
 | AccessHologram | Accesses the hologram object directly in the current buffer. |
| CancelSaving | Cancels the saving of a sequence. |
| CastSequence | Casts an existing sequence into the current buffer. |
| ComputeAndApplyFittingToConfiguration | Compute fitting on specified phase result using configuration parameters. |
| DeregisterConfigurationMemberModifiedEvent |
Deregister a function registered to the specified member.
(Inherited from ConfigurationEventsManager) |
| DeregisterConfigurationModifiedEvent |
Deregister a registered function.
(Inherited from ConfigurationEventsManager) |
| Dispose | (Inherited from ConfigurationEventsManager) |
| ExtractSequence | Extract the current sequence buffer and resets the data. |
| GetHologramCopy | Gets a copy of the defined hologram in the current buffer. |
| GetReconstruction | Gets the reconstruction results of a record in the current buffer. |
| IsInState | Determines if the state machine is in the supplied state. |
| RegisterConfigurationMemberModifiedEvent |
Register a function that will be executed when the specified member is modified.
(Inherited from ConfigurationEventsManager) |
| RegisterConfigurationModifiedEvent |
Register a function that will be executed when any configuration member is modified.
(Inherited from ConfigurationEventsManager) |
| Reset | Resets recorded buffer. |
| SaveBigTiffSequence | Saves the sequence into a BigTiff (.btf) format. |
| SaveKoalaSequence | Saves the sequence in a Koala compatible format. |
Events| Name | Description | |
|---|---|---|
 | ActiveConfigurationChanged | |
| StateMachineStateChanged | Occurs when the state machine state changes |

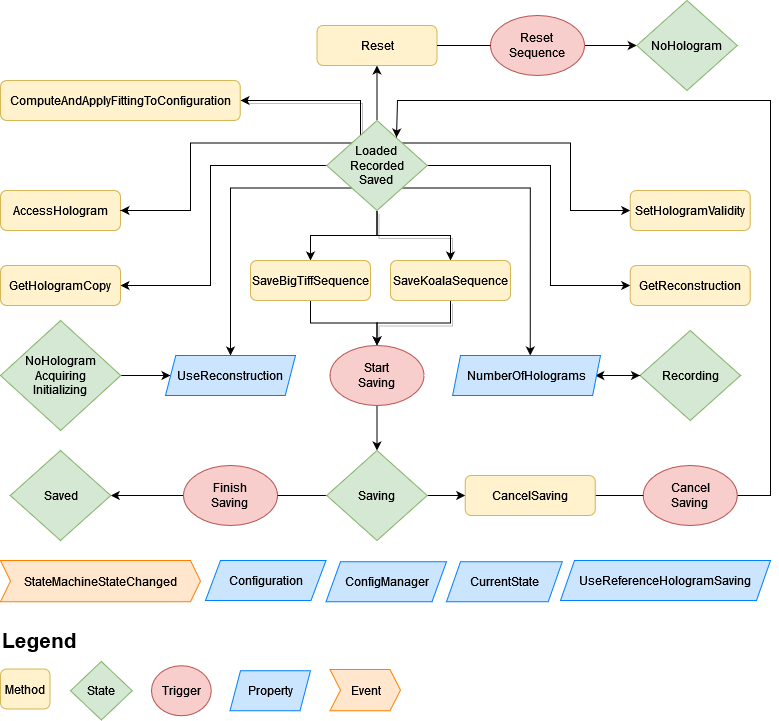

RemarksSome calls to the class elements can only be performed when CurrentState has some defined values. The following scheme describes the allowed actions.
Thread SafetyStatic members of this type are safe for multi-threaded operations. Instance members of this type are safe for multi-threaded operations.
