 | Sequence |
Class managing sequences loading from disk.
Inheritance HierarchySystemObject
LynceeTec.API.SequenceConfigurationEventsManager
LynceeTec.API.SequenceBaseSequenceManager
LynceeTec.API.SequenceSequenceLoader
LynceeTec.API.SequenceConfigurationEventsManager
LynceeTec.API.SequenceBaseSequenceManager
LynceeTec.API.SequenceSequenceLoader
Namespace: LynceeTec.API.Sequence
Assembly: LynceeTec.API.Sequence (in LynceeTec.API.Sequence.dll) Version: 10.2.3317.0 , built 2025-03-17 14:55:36 UTC
SyntaxThe SequenceLoader type exposes the following members.
Constructors| Name | Description | |
|---|---|---|
 | SequenceLoader(UInt32) | Initializes a new instance of the SequenceLoader class |
| SequenceLoader(IConfigManager, UInt32) | Initializes a new instance of the SequenceLoader class |
Properties| Name | Description | |
|---|---|---|
 | ConfigManager |
Gets the current ConfigManager in use.
(Inherited from BaseSequenceManager) |
| Configuration |
Gets the current configuration used for hologram reconstruction.
(Inherited from BaseSequenceManager) |
| CurrentState |
Gets the current state of the sequence manager.
(Inherited from BaseSequenceManager) |
| IsDatabaseConfigurationInitialized | Gets a value indicating whether the database configuration is initialized. |
| IsMetadataConfigurationInitialized | Gets a value indicating whether the metadata configuration is initialized. |
| NumberOfRecords |
Gets the current total number of records.
(Inherited from BaseSequenceManager) |
| ReconstructionWindowHalfSize |
Defines how many reconstructions must be processed around the selected index.
If GetReconstruction(ReconstructionResults, Int32, Boolean) is called for index i, outputs in range
[i - ReconstructionWindowHalfSize, i + ReconstructionWindowHalfSize]
are reconstructed to optimize the process and anticipate the call to future indices.
(Inherited from BaseSequenceManager) |
| TemporalAveragingFramesNumber | (Overrides BaseSequenceManagerTemporalAveragingFramesNumber) |
| UseMetadataConfiguration | Gets or sets a value indicating whether to use the configuration created from the metadata or the database. |
| UseReconstruction |
Gets or sets a value indicating whether the reconstruction is enabled.
(Inherited from BaseSequenceManager) |
| UseReferenceHologramSaving |
Gets or sets the option saving the reference hologram(s) in the first hologram metadata of the acquired sequence.
(Inherited from BaseSequenceManager) |
Methods| Name | Description | |
|---|---|---|
| AccessHologram |
Accesses the hologram object directly in the current buffer.
(Inherited from BaseSequenceManager) |
| CancelLoading | Cancels the loading of a sequence from a file. |
| CancelSaving |
Cancels the saving of a sequence.
(Inherited from BaseSequenceManager) |
| CastSequence |
Casts an existing sequence into the current buffer.
(Overrides BaseSequenceManagerCastSequence(BaseSequenceManagerHologramGroupBuffer)) |
| ComputeAndApplyFittingToConfiguration |
Compute fitting on specified phase result using configuration parameters.
(Inherited from BaseSequenceManager) |
| DeregisterConfigurationMemberModifiedEvent |
Deregister a function registered to the specified member.
(Inherited from ConfigurationEventsManager) |
| DeregisterConfigurationModifiedEvent |
Deregister a registered function.
(Inherited from ConfigurationEventsManager) |
| Dispose | (Inherited from ConfigurationEventsManager) |
| ExtractSequence |
Extract the current sequence buffer and resets the data.
(Inherited from BaseSequenceManager) |
| GetHologramCopy |
Gets a copy of the defined hologram in the current buffer.
(Inherited from BaseSequenceManager) |
| GetReconstruction |
Gets the reconstruction results of a record in the current buffer.
(Inherited from BaseSequenceManager) |
| IsInState |
Determines if the state machine is in the supplied state.
(Inherited from BaseSequenceManager) |
| LoadSequence | Loads an existing sequence. |
| RegisterConfigurationMemberModifiedEvent |
Register a function that will be executed when the specified member is modified.
(Inherited from ConfigurationEventsManager) |
| RegisterConfigurationModifiedEvent |
Register a function that will be executed when any configuration member is modified.
(Inherited from ConfigurationEventsManager) |
| Reset |
Resets recorded buffer.
(Inherited from BaseSequenceManager) |
| SaveBigTiffSequence |
Saves the sequence into a BigTiff (.btf) format.
(Inherited from BaseSequenceManager) |
| SaveKoalaSequence |
Saves the sequence in a Koala compatible format.
(Inherited from BaseSequenceManager) |
Events| Name | Description | |
|---|---|---|
 | ActiveConfigurationChanged | (Inherited from BaseSequenceManager) |
| StateMachineStateChanged |
Occurs when the state machine state changes
(Inherited from BaseSequenceManager) |

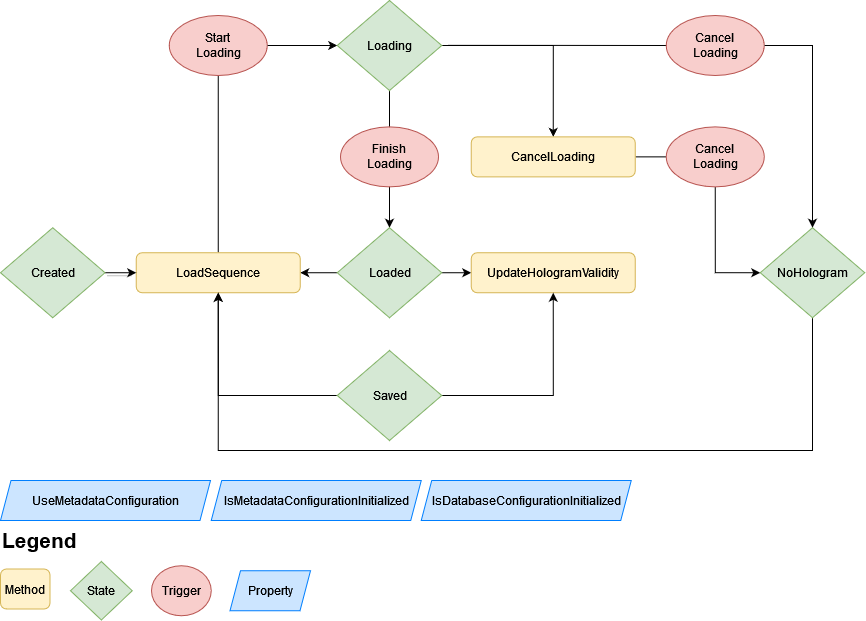

RemarksSome calls to the class elements can only be performed when CurrentState has some defined values. The following scheme describes the allowed actions.
Thread SafetyStatic members of this type are safe for multi-threaded operations. Instance members of this type are safe for multi-threaded operations.
See Also
